With OAuth, one person signs in to Google and Onyx indexes what that account can see: its My Drive, the shared drives it belongs to, and files shared with it. It works with a personal Google account and needs no Workspace administrator. For a whole Google Workspace, or for Auto Sync Permissions, use a service account instead. Onyx accepts an OAuth credential for permission sync, but it can only read the sharing of files the signed-in account can reach, so the result is incomplete.

​
Before you begin

You need:
  • A Google Cloud project, or permission to create one.
  • The public address of your Onyx deployment, such as https://onyx.example.com. Google sends the sign-in back to that address, so it must match exactly.
  • The Google account that will authorize Onyx. Everything the connector indexes is what this account can open.

​
Configure Google Cloud

1

Create or pick a project

In the Google Cloud console, create a project, or select an existing one.
2

Enable the APIs

Open APIs & Services → Library and enable three APIs:
  • Google Drive API
  • Admin SDK API, which permission sync uses to read the Workspace directory
  • Google Docs API, which Onyx uses to split Google Docs at their headings

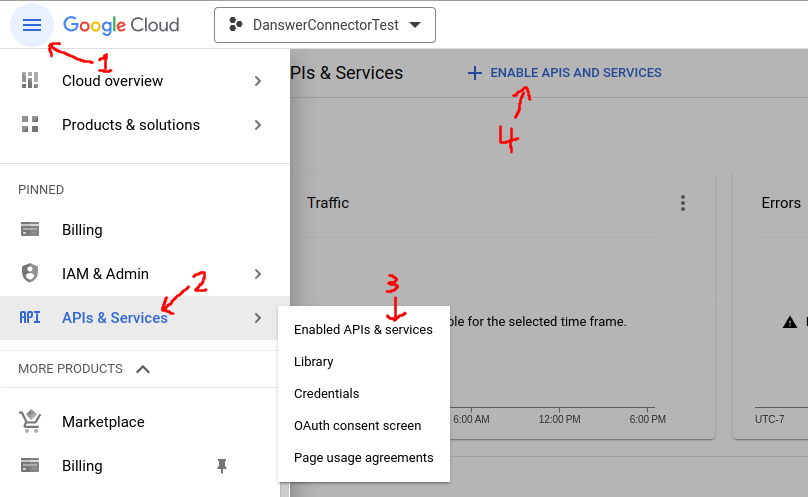

Each has a direct link: Drive, Admin SDK, Docs.Google Cloud console enabling the Google Drive API for the project
3

Set up the consent screen

Open Google Auth Platform → Branding. If the project has no consent screen yet, select Get started.
  • App name: Onyx, or any name your users will recognize.
  • User support email: an address at your organization.
  • Audience: Internal if the project belongs to a Google Workspace and only its users will authorize Onyx. External otherwise, including for a personal Google account.
  • Contact information: an address at your organization.
Agree to the user data policy and select Create.
4

Add the scopes

Open Google Auth Platform → Data Access and select Add or remove scopes. Add these four, then select Update and Save:
The two Drive scopes are marked sensitive, and the two Admin SDK scopes are restricted. With an Internal audience Google applies no review. With External, see the next step.The Google Cloud console scope picker with the Drive and Admin SDK read-only scopes selected
5

Add test users, for an External audience

An External app starts in testing, and only listed test users can authorize it. Open Google Auth Platform → Audience, and under Test users select Add users and add the Google account that will authorize Onyx.Testing mode is enough for Onyx. Google expires a test user’s authorization after seven days, though, so the account has to reauthorize the credential weekly. To avoid that, publish the app under Publishing status. With restricted scopes, publishing sends the app to Google for verification, so an Internal audience is the easier path for a Workspace.
6

Create the OAuth client

Open Google Auth Platform → Clients and select Create client.
  • Application type: Web application.
  • Name: Onyx, or anything you like.
  • Authorized redirect URIs: select Add URI and enter your Onyx address followed by /admin/connectors/google-drive/auth/callback:

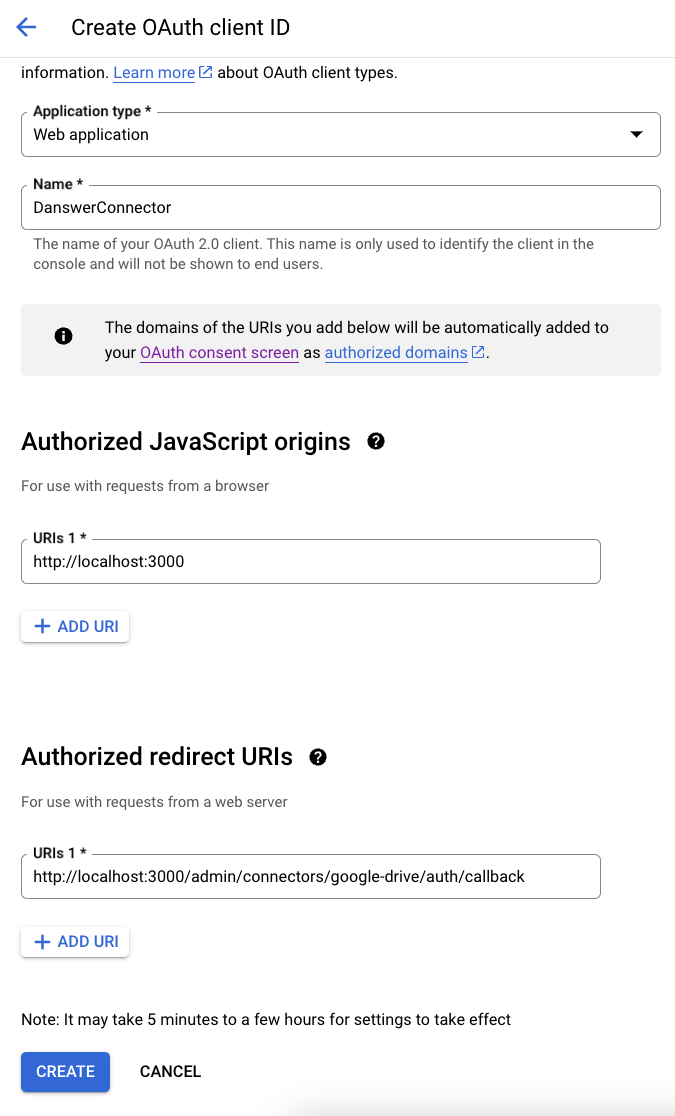

On Onyx Cloud the address is https://cloud.onyx.app. For a local deployment it is http://localhost:3000. The scheme, host, and port must match your deployment exactly, or Google rejects the sign-in.The Google Cloud console OAuth client form with the Onyx redirect URI filled in
7

Download the client JSON

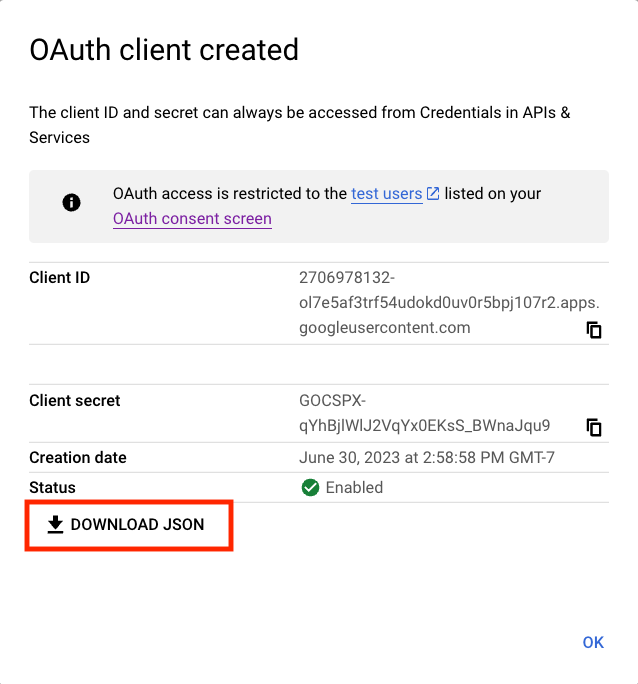

Select Create. In the dialog that follows, select Download JSON. The same download is available later from the client’s row under Clients. This file is the OAuth app you upload to Onyx.The Google Cloud console dialog after creating an OAuth client, with the Download JSON option

​
Create the credential in Onyx

1

Open the Google Drive connector

In Onyx, go to Admin Panel → Add Connector and select Google Drive, then select Create New.
2

Upload the OAuth app

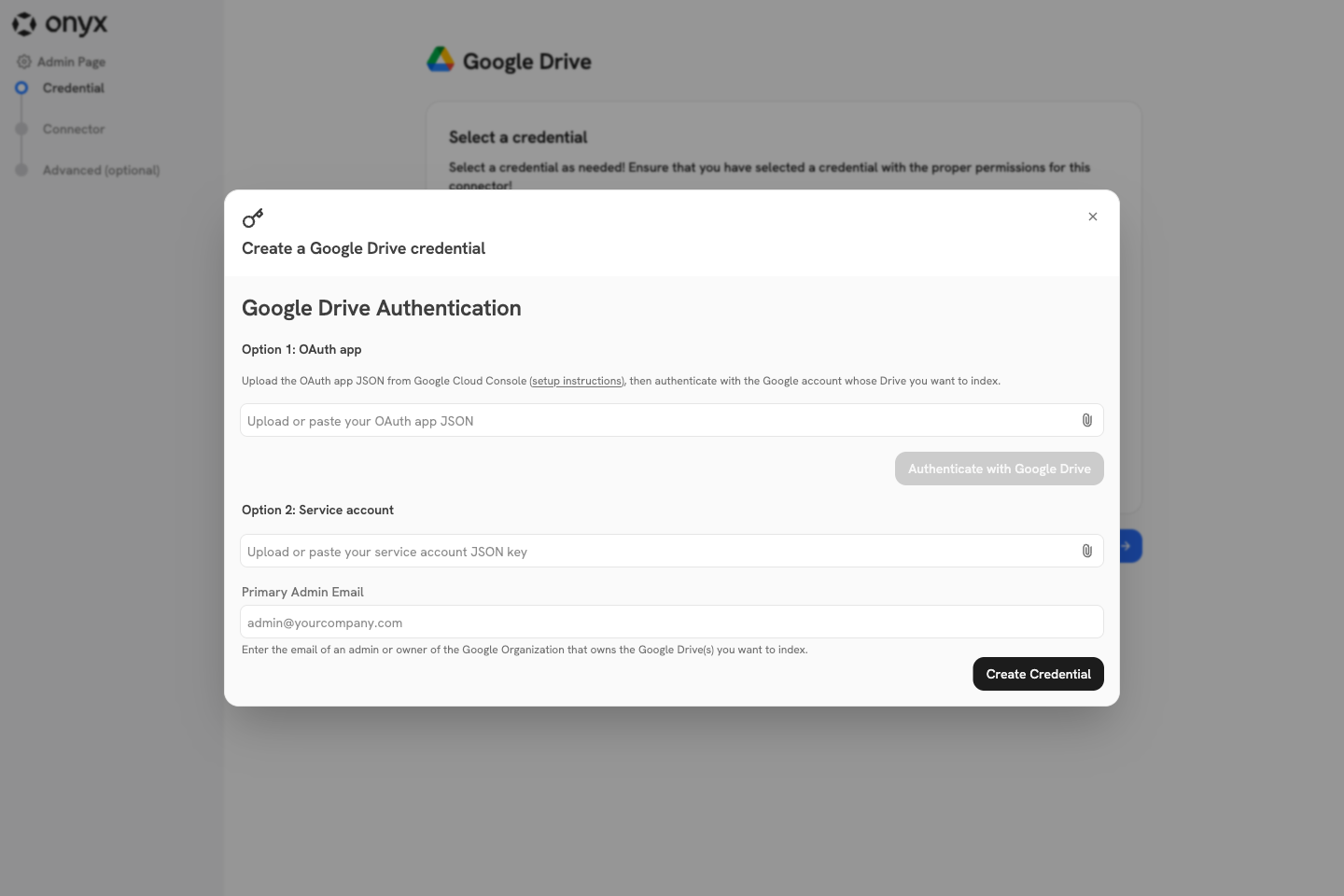

Under Option 1: OAuth app, upload or paste the client JSON you downloaded.The Onyx Google Drive credential dialog with the OAuth app upload and the Authenticate with Google Drive button
3

Sign in to Google

Select Authenticate with Google Drive and sign in as the account whose Drive Onyx should index. Approve every permission Google lists; Onyx needs all four. Google returns you to Onyx, which shows Authentication Complete and creates the credential.
4

Continue to the connector

Select the new credential and select Continue. Then follow Configure the connector in Onyx.
Each OAuth credential carries its own app JSON and its own Google account. To add another connector for the same account, select the existing credential rather than creating a new one. To index a different account, create a new credential and sign in as that account; the same app JSON can be reused.

​
Permission sync with an OAuth credential

If you use this credential with Auto Sync Permissions, the account that signed in must be a Workspace administrator with these privileges, set under Account → Admin roles in the Google Admin console:
  • Admin console privileges → Services → Drive and Docs → Settings
  • Admin API privileges → Users → Read
  • Admin API privileges → Groups → Read
  • Admin API privileges → Organization Units → Read
Even then, Onyx can only follow the folders and shared drives this one account can open, so files shared in ways this account cannot see are not mirrored correctly. A service account does not have that limit.
